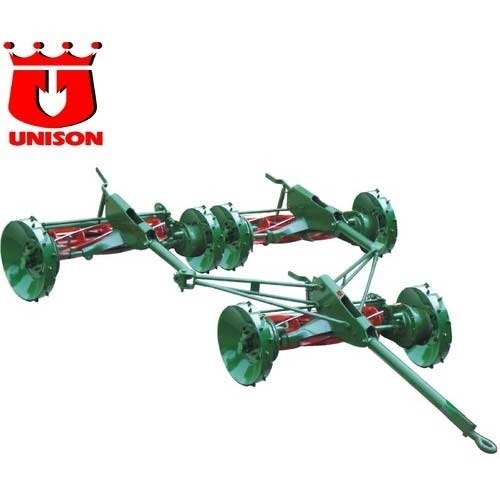

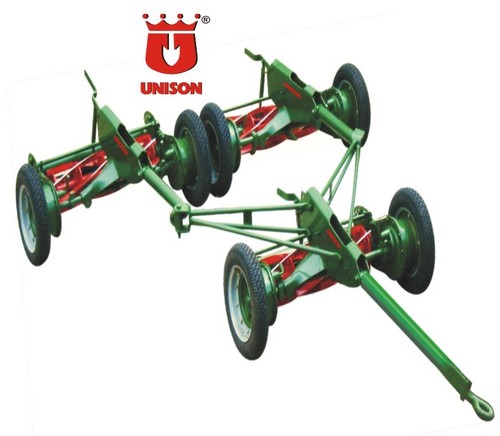

Classic Gang Mower

Get a Price/Quote

MOQ : 10 Pieces

Classic Gang Mower Specification

Tool Type
Lawn Mower

Shape
Rectangular, with cylindrical rollers

Features
Multiple reels, adjustable cutting height, sturdy construction

Usage & Applications
Large lawns, parks, sports grounds, cricket field, golf course

Noise Level
Low (manual operation)

Product Type
Gang Mower

General Use
Ground maintenance, golf courses, parks, lawns

Capacity
3/5/7/9 unit gangs (as per model)

Weight (kg)
Approx. 120-350 kg (based on configuration)

Type
Manual push and tractor drawn options

Drive Type
Ground driven (gear mechanism)

Power
Manual or Tractor Powered

Power Source
Manual/Tractor

Transmission Type
Gear Based

Engine Type
N/A (manual or tractor powered)

Start Method
Manual/Tractor attachment

Machine Speed
Depends on pulling speed

Production Output
High efficiency, wide area coverage

Material
Steel frame, alloy blades

Dimension (L*W*H)
Varies by unit (e.g., 2800 x 1650 x 1000 mm for 5-unit)

Color
Green & Red (as shown)

Wheels
Rubber tyred or pneumatic

Operating Width
Varying models (e.g., 1200-2400 mm)

Reel Material
Steel with wear-proof coating

Frame Type
Heavy duty steel welded

Reel Diameter
180 mm to 250 mm

Surface Finish
Powder coated

Blade Material
Hardened alloy steel

Corrosion Resistance
Yes, with powder coating

Bearing Type
Sealed ball bearing for smooth rotation

Attachment
Quick hitch type for tractor

Cutting Height Adjustment
12 mm to 75 mm adjustable

Suitable Tractor Power
Minimum 15 H.P. for 5-unit configuration

Number of Blades per Reel
6, 8 or 10 blades (optional/varies with model)

Maintenance
Easy to operate and service

Cutting Width
Up to 2400 mm (as per unit configuration)

Classic Gang Mower Trade Information

Minimum Order Quantity
10 Pieces

FOB Port
MUMBAI

Payment Terms
Telegraphic Transfer (T/T), Letter of Credit at Sight (Sight L/C)

Supply Ability
100 Pieces Per Day

Delivery Time
10 Days

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Domestic Market
All India

About Classic Gang Mower

Technical Specifications

Forward Speed	Constant
Usage/Application	Agricultural use
Cutting Height	1/2 to 8 inches
Color	Green, Red
Brand	UNISON
Size	750 mm each
Cutting Width	1 unit - 76 cm

Cutting Performance and Versatility

The Classic Gang Mower delivers uniform, precise cutting with its adjustable height system and robust blades made from hardened alloy steel. Available in configurations ranging from 3 to 9 units, and operating widths up to 2400 mm, this mower is engineered to tackle large spaces swiftly and effectively, making it perfect for sporting grounds, golf courses, and public parks.

Sturdy Build and Superior Durability

Constructed using heavy-duty steel and protected with a powder-coated finish, the Classic Gang Mower offers exceptional resistance against corrosion and wear. Its seamless steel frame and sealed ball bearings help channel maximum durability, providing stable operation over varied terrains and extending the equipments lifecycle even with frequent use.

Ease of Operation and Maintenance

This mower is designed for straightforward operation and easy servicing. Its quick-hitch system attaches rapidly to tractors with a minimum of 15 H.P. for a five-unit setup. The ground-driven gear mechanism and smooth ball bearing system ensure hassle-free movement, while the user-friendly build allows for simple height and blade adjustments without specialized tools.

FAQs of Classic Gang Mower:

Q: How do I adjust the cutting height on the Classic Gang Mower?

A: The cutting height can be adjusted between 12 mm and 75 mm using the adjustment mechanism provided on the mower, enabling tailored results for different turf requirements. No specialized tools are needed for this process.

Q: What type of tractors are compatible with the gang mowers quick hitch attachment?

A: The Classic Gang Mower is compatible with tractors possessing a minimum of 15 H.P. when configured as a five-unit model. Its quick hitch design ensures fast, secure attachment to most standard agricultural tractors.

Q: When should I opt for more blades per reel on my gang mower?

A: Choosing a higher number of blades per reel (options: 6, 8, or 10) is beneficial for achieving finer cuts and more frequent mowing cycles. This is especially useful on sports grounds or golf courses requiring smooth, manicured finishes.

Q: Where can the Classic Gang Mower be effectively used?

A: This mower is ideal for large lawns, parks, cricket and sports fields, golf courses, and any areas requiring high-quality, wide-coverage grass maintenance. Its robust build and versatility make it suitable for both public and private grounds.

Q: What is the regular maintenance process for this mower?

A: Routine maintenance involves checking and greasing the sealed ball bearings, inspecting the hardened alloy steel blades for wear, cleaning the powder-coated surfaces, and ensuring all bolts and attachments remain secure. The design makes all critical components easily accessible for upkeep.

Q: How does the gang mower benefit ground maintenance operations?

A: Its wide cutting width and multiple reel configurations enable swift coverage of large areas, reducing overall mowing time and labor. The sturdy, corrosion-resistant build results in fewer repairs and longer service life, making it a cost-effective solution for professional turf management.

Q: What are the advantages of the gear-based ground drive system?

A: The gear-based ground drive offers reliable, consistent motion directly from the mowers wheels, eliminating the need for separate power sources and minimizing noise. This system ensures smooth reel rotation for even, efficient mowing.
